SAP ERP 6.0 EHP6 ORACLE x64 2012
Sumber : http://etcircle.com/sap-erp-6-0-ehp6-ides-install-on-oracle-and-windows-2008-r2/SAP ERP 6.0 EHP6 IDES Install on Oracle and Windows 2008 R2
There are many tutorials over the internet about installing SAP IDES installation, but most of them are missing some details. In this tutorial, I will try to put all the information that you will need for installing SAP IDES on fresh Windows Server 2008 R2 OS install without a need for any technical knowledge. As I already wrote earlier, without access to real SAP ERP IDES system, it will be impossible to develop your SAP skills and knowledge. If you read this tutorial, you probably have access to following software packages:
- OS: Windows 2008 R2 64 bit
- DB: Oracle 11g
- ERP: SAP 6.0 EHP6 IDES ABAP Stack
- GUI: SAP GUI 7.*
I am going to install it for this demonstration on following a laptop with following characteristics:
- CPU: Core 2 Duo T8300
- RAM: 8GB
- HDD1: 80 GB 7200 rpm (64 GB used including 25GB SWAP, Oracle DB Software and Windows)
- HDD2: 750 GB 7200 rpm (249 GB used for SAP & DB Install)
Usually, the bottlenecks of every SAP system are the HDD and Memory. That’s the reason I wanted to go with two HDDs which will allow me to divide the load at least on two physical drives. The smaller one will be for Windows OS, SWAP file and DB Software. The second one will be for SAP Software and DB Instance. I recommend you to install a pure ABAP stack instead of JAVA + ABAP because it will be lighter and in the same time is sufficient for FICO training.
There several important steps in the installation:
I. Change the Computer name
II. Create SWAP Space
III. Install Oracle RDBMS
IV. Java SDK install (Optional)
V. SAP ERP EHP6 IDES
VI. SAP GUI Install
I. Change the Computer name (less than 13 characters):
To change it, you will need to go to advanced system settings. The easiest ways is to write “system settings” in the windows taskbar.
Click on “View advanced system settings”.
Go to tab Computer name and hit “Change…”. Change the computer name. If you try to change the workgroup, the system will need a restart.
II. Create at least 20 GB SWAP Space
Go Again to advanced system settings, click on Advanced, then click on “Performance”, then again on “Advanced” and hit “Change”. Uncheck the “Automatically manage paging file size for all drives”. Then set custom size at least 20 480 MB.
III. Install Oracle RDBMS
In the RDBMS package folder, go to subfolder \database\SAP and start “sapserver.cmd” as administrator.
Enter the drive letter in which you want to install the Oracle software. It takes around 30 GB HDD space.
Enter three characters for the name of the SAP Instance. e.g. – ECC

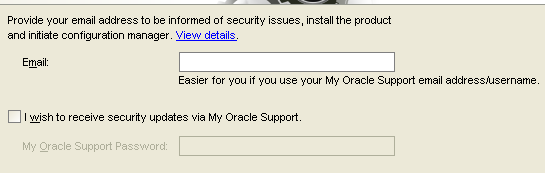

Configure Security Updates
Set email if you would like to receive additional information about security issues. For this demo, I will uncheck the wish to receive security updates.
Download Software Updates
Enter your credentials or skip the updates:
Installation Option
Leave it by default:
Grin Installation Options
Leave it by default:
Product Language
Choose if you want another language other than English and click next:
Database Edition:
Leave it by default:
Click Next & Next and then “Install” button.
IV. Install Java Runtime – JAVA_HOME (Optional Step for ABAP Stack)
For ABAP stack it is no required to install JAVA SDK, but it is recommended.
Download and install – j2sdk-1_4_2_-windows-amd64.
Install everything which is set by default.
Go to C:\ and find the new folder where the java is installed:
Copy the full path
Go again to “advanced system settings”:
Choose Advanced tab and open the “Environment Variables”:
Click on “New”, enter a variable name and a path to the java folder.
Find the “Path” variable and add following in the end.
;%JAVA_HOME%\bin
V. Install SAP ERP ECC IDES
Go to Installation Master Folder, click on the sapinst file, run it as administrator and choose the followingoption:
Choose “Typical”:
Click OK
The Windows will log off. You should logon again where SAP installation will continue automatically.
If the SAP install asks for prerequisites checker, click next and mark the flags as on the next screenshot
Choose following options:
Choose database type:
Leave next screen as it is by default:
Click Next till the prerequisite checking starts.
After finishing if you have a warning about JAVA SDK ignore it and proceed with the installation.
Enter the SAP SID
Unmark “Set FQDN for SAP System” if such is marked initially:
Fill initial master password for the administrators’ users in SAP ERP – SAP* and DDIC users:
Enter passwords for Windows users which are created during installation. It will be requested when you start SAP Instance.
In next several steps choose the right folders with related packages necessary for installing:
Try with Export 2 or Export 11 on following screen:
Oracle parameters. Leave it by default.
Kernel NW 7.20 – SL Controller
DAA leave it by default:
Click yes on DAA window:
Mark “No SLD destination”.
Installation begins. Import ABAP step will take around 12 hours. The whole installation took around 20 hours on the hardware described above.
VI. SAP GUI Install
Next step is to install SAP Graphical User Interface or also known as SAP GUI. You will find SAP GUI for Windows and SAP GUI for JAVA. You will find SAP GUI for JAVA packages for MAXC OS X, Linux, Windows, etc.
In this tutorial, I will show you how to install and setup SAP GUI for Windows.
a) Start installation with executing SapGuiSetup.exe
*Depending on the package that you download, you could have different files
Click on “Next”
Mark “SAP GUI for Windows” and click on “Next”
Choose different folder or leave it by default:
The installation will start after confirmation, and it will probably take around 15 minutes.
b) Setup your SAP GUI and connect to your SAP ERP IDES server
Start SAP Logon Application.
Create New Connection
Choose “Next”.
Enter IP address of the SAP Server. You could also enter localhost if you installed SAP GUI on the same OS/machine as your SAP ERP IDES.
Fill an “Instance Number” in the following field. Usually, it is 00.
Enter SAP SID that you defined earlier during installation
Leave SAProuter String blank except you know what you are doing :).
Here is how my setup looks like when I am installing SAP GUI on the same OS as the SAP IDES Demo Server.
Double click on the connection that we configured:
On logon screen enter Client 800 (Main client for FICO).
You could enter with following users and related passwords.
user: idadmin / password: ides
user: sap*/ password: (defined during installation) (For 8x clients password – 06071992)
user: ddic/ password: (defined during installation) (For 8x clients password – 19920706)
I hope you will like the tutorial. It became a little longer than expected, but I think it cover everything that you will need to install SAP ERP IDES with Oracle DB on Windows OS. Do not use this tutorial for production usage! If you have a question, do not hesitate to comment below. Enjoy SAP ERP IDES and have fun while learning :).
Sumber : http://quicksap.blogspot.com/2015/03/ecc-60-installation-on-windows.html
ECC 6.0 Installation on Windows
1. INTRODUCTION
1.1 SAP NOTES FOR THE INSTALLATION
The Master Guide is the central document for overall implementation process for your SAP system installation. It contains crucial information about the overall implementation sequence that is activities you have to perform before and after the installation process. First we need to read Master guide. You can find a printed version of the Master Guide in your installation package.
Location: service.sap.com/instguides
2. INSTALLATION OPTION
2.1 STANDARD SYSTEM:
In a standard system, all main instances run on a single host.
https://websmp104.sap-ag.de/support
Path:
Software Downloads >Installations and Upgrades > Browse our Download Catalog > SAP Frontend Components > SAP GUI FOR WINDOWS > SAP GUI FOR WINDOWS 7.30 CORE >Installation
Select: NW 7.0 Presentation - 7.30 Compilation 2 Present
The following tables show the System configuration used for installation of
Enhancement Package 6 for SAP ERP 6.0
5.2 MEDIA LIST FOR ENHANCEMENT PACKAGE 6 FOR SAP ERP 6.0
Media List - Enhancement Package 6 for SAP ERP 6.0
On the database server, place the Oracle RDBMS DVD and change to the directory :<DVD_DRIVE>:\database\SAP\
Start the Oracle Universal Installer (OUI) by double-clicking the file sapserver.cmd.
6.1 CHECK WHEATHER YOU CAN LOGIN TO SAP SYSTEM
6.2 PERFORM A CONSISTENCY CHECK
1.1 SAP NOTES FOR THE INSTALLATION
1680045: Release Note for Software Provisioning Manager 1.0
1710950: Inst. SAP Systems Based on NW 7.1 and higher: Windows
1710995: Inst. SAP Systems Based on NW 7.1 and higher: Win Oracle
1431800: Oracle 11.2.0: Central Technical Note
1365123: Installation of Diagnostics Agents
855498 : Installation Prerequisite Checker
1597765: Known problems with Support Packages in SAP NW 7.31 AS ABAP
1448655: Inst. 7.30 SP2 - Diagnostics Agent installation
69455: Servicetools for Applications ST-A PI ST14, RTCCTOOL and ST12
1710950: Inst. SAP Systems Based on NW 7.1 and higher: Windows
1710995: Inst. SAP Systems Based on NW 7.1 and higher: Win Oracle
1431800: Oracle 11.2.0: Central Technical Note
1365123: Installation of Diagnostics Agents
855498 : Installation Prerequisite Checker
1597765: Known problems with Support Packages in SAP NW 7.31 AS ABAP
1448655: Inst. 7.30 SP2 - Diagnostics Agent installation
69455: Servicetools for Applications ST-A PI ST14, RTCCTOOL and ST12
1.2 INSTALLATION GUIDES
The Master GuideThe Master Guide is the central document for overall implementation process for your SAP system installation. It contains crucial information about the overall implementation sequence that is activities you have to perform before and after the installation process. First we need to read Master guide. You can find a printed version of the Master Guide in your installation package.
Location: service.sap.com/instguides
- Master Guide – SAP NetWeaver 7.3 service.sap.com/installNW73
- Master Guide – SAP Enhancement Package 1 for SAP NetWeaver 7.3 service.sap.com/installNW73
- Master Guide – SAP NetWeaver 7.4 service.sap.com/installNW74
- Installation guide
- Media guide
2. INSTALLATION OPTION
2.1 STANDARD SYSTEM:
In a standard system, all main instances run on a single host.
- Central services instance for ABAP (ASCS instance)
- Database instance (DB)
- Primary application server instance (PAS instance)
2.3 HIGH-AVAILABILITY SYSTEM
In a high-availability system, every instance can run on a separate host.
There are the following instances:
- Central services instance for ABAP (ASCS instance)
- Enqueue replication server instance (ERS instance) for the ASCS instance (mandatory)
- Database instance (DB)
- Primary application server instance (PAS)
2.4 ADDITIONAL APPLICATION SERVER INSTANCE
An additional application server instance can run on:
- The host of any instance of the existing SAP system (exceptions see below)
- On a dedicated host
3. PLANNING
3.1 PREREQUISITES
- You have planned your SAP system landscape according to the Master Guide available at the appropriate download location under service.sap.com/instguides.
- You have decided on your installation option.
3.2 PROCESS FLOW
The following sections list the core software requirements, the choices available to you within the core requirements, and the installation methods that you can use.
1. Determine system requirements.3.3 PLANNING THE INSTALLATION
2. Set up account permissions.
3. Determine network permissions.
4. Choose a web application server.
5. Choose a database server.
1. Check the hardware and software requirement
2. Make sure that the host name meets the requirements listed in SAP Note 611361.
3. Running the Prerequisite Checker in Standalone Mode (Optional)
4. Plan for Host name , SID , Instance Number
5. Host name : KUNAL_RAI
SID : KUN
Instance Number: 00
6. Master password(Dont give "@" in password)4. PREPARATION
7. Decide Installation mode – Typical or custom
1. In a Standard system (Central System), all mandatory instances are installed on one host.Download link for SAP frontend software:
2. Change computer name to < 13 characters
3. If you use Windows Server 2008 (R2), you disable the Windows Server 2008 (R2) firewall
4. Change swap space to at least 25GB
5. You check that you have the required user authorization for running SAPinst. Here we created new user (basisadm) as shown in below screen with member of shown group shown below:
6. Change default Windows “Administrator” password
7. You install the latest SAP frontend software on the desktop of the end user.
https://websmp104.sap-ag.de/support
Path:
Software Downloads >Installations and Upgrades > Browse our Download Catalog > SAP Frontend Components > SAP GUI FOR WINDOWS > SAP GUI FOR WINDOWS 7.30 CORE >Installation
Select: NW 7.0 Presentation - 7.30 Compilation 2 Present
8. Install JRE4.1 HARDWARE CONFIGURATION USED
9. You make sure that the required installation media is available on Server.
The following tables show the System configuration used for installation of
Enhancement Package 6 for SAP ERP 6.0
Hardware Requirement Hardware Configuration Used5. INSTALLATION
Operating System Windows Server 2008 (R2)
Disk Space 1TB
Installed RAM 8GB
Installation has following six parts
1. Preparing OS and system for SAP installation5.1 HARDWARE AND SOFTWARE REQUIREMENTS
2. Install JAVA
3. Set the Virtual Memory
4. Installation SAP Database
5. Installation of SAP Central Instance
6. Post-Installation tasks, i.e. Applying patches, upgrades etc.
Hardware Requirement | Requirement |
Minimum disk space | Database software: 2 to 5 GB Central services instance for ABAP (ASCS) (not including paging file): 5 GB (x64) Database instance (not including paging file): 35 GB In addition you require 1.5 GB for the diagnostics agent Temporary disk space for every required installation medium that you have to copy to a local hard disk:4.3 GB |
Minimum RAM | All instances, except SAP host agent, and diagnostics agent: 4 GB SAP host agent: 0.5 GB Diagnostics agent: 1 GB |
Paging file size | For more information, see SAP Note 1518419. |
Software Requirement | Requirement |
Windows operating system | 64-bit version of Windows Server 2008 (R2) : For any version of Windows Server, you need the latest supported service pack |
Database software | Database instance: Database server software for Oracle 11g |
Media List - Enhancement Package 6 for SAP ERP 6.0
Abbreviation Used in the Installation Guide | Label(Physical DVD) | SAP Service Marketplace Names (Names of Packages Downloadable from http://service.sap.com/swdc) |
Software Provisioning Manager 1.0 | SWPM10SP03_7-20009707.SAR | SW Prov. Mgr. 1.0 SP03 for systems based on NW7.1x or higher |
SAP Kernel DVD for installation SWPM | · SAP KERNEL 720_EXT · SL CONTROLLER 700 | · 720_EXT UC Kernel for SWPM SP04 - Windows Server x64 64bit · SL CONTROLLER 700 for SWPM SP04 |
EHP6 FOR SAP ERP 6.0Installation Export | EHP6 FOR SAP ERP 6.0Installation Export | SAP ERP 6.0 EHP6 Installation Export 1 of 8 SAP ERP 6.0 EHP6 Installation Export 2 of 8 SAP ERP 6.0 EHP6 Installation Export 3 of 8 SAP ERP 6.0 EHP6 Installation Export 4 of 8 SAP ERP 6.0 EHP6 Installation Export 5 of 8 SAP ERP 6.0 EHP6 Installation Export 6 of 8 SAP ERP 6.0 EHP6 Installation Export 7 of 8 SAP ERP 6.0 EHP6 Installation Export 8 of 8 |
RDBMS Client DVD | ORACLE Client 11.2.0.3 | ORACLE Client 11.2.0.3 |
5.3 INSTALLING THE ORACLE 11G DATABASE SOFTWARE
5.3.1 PREREQUISITE
- Windows Server 2008 (R2)
- Database Media – ORACLE
Abbreviation Used in the Installation Guide | Label(Physical DVD) | SAP Service Marketplace Names (Names of Packages Downloadable from http://service.sap.com/swdc) |
ORACLE RDBMS DVD | ORACLE 11.2.0.3 64-BIT RDBMS Windows Server on x64 64bit | ORACLE RDBMS 11.2.0.3 Windows x64 1 of 6 ORACLE RDBMS 11.2.0.3 Windows x64 2 of 6 ORACLE RDBMS 11.2.0.3 Windows x64 3 of 6 ORACLE RDBMS 11.2.0.3 Windows x64 4 of 6 ORACLE RDBMS 11.2.0.3 Windows x64 5 of 6 ORACLE RDBMS 11.2.0.3 Windows x64 6 of 6 |
On the database server, place the Oracle RDBMS DVD and change to the directory :<DVD_DRIVE>:\database\SAP\
Start the Oracle Universal Installer (OUI) by double-clicking the file sapserver.cmd.
1) Specify the drive letter of the local disk where you want to install the Oracle software, and the <DBSID>.5.4 INSTALLATION OF ENHANCEMENT PACKAGE 6 FOR SAP ERP 6.0
2) Do not select the check box. Choose Next.
3) The installer issues a warning. Choose Yes and then Next.
4) Choose Skip Software updates and then Next.
5) Confirm the default selection Install database software only and then choose Next.
6) Confirm the default selection Single instance database installation and then choose Next.
7) Select Product Languages Confirm the default option English and then choose Next.
8) Select Database Edition Confirm the default option Enterprise Edition and then choose Next.
9) Choose Next
10) Perform Prerequisite Checks This window checks if all the required system prerequisites for the installation of the database software have been me
11) Choose Install
12) After the installation has finished successfully, close the Oracle Universal Installer.
1) Uncar Software Provisioning Manager 1.0 SWPM10 with following command6 POST INSTALLATION
Sapcar –xvf 70SWPM10SP01_3-20009707.sar–R < Location of New Folder>
2) Run the correct version of “sapinst.exe” (Install master folder\Data_Units\BS2011_IM_Windows_x86_64
After Completion of extraction run the installation tool SAPinst from < Location of New Folder>
3) Go to SAP Business Suit 7i 2011>Enhancement Package 6 for SAP ERP 6.0>SAP Application Server ABAP > Oracle >Central Systems >Central Systems >Choose Next
4) Choose Typical > Choose Next
5) Give SAP System ID and Installation Drive as Input > Choose Next
6) Give Master Password as Input > Choose Next
7) Give Database ID given during Installation Database Software > Choose Next
8) Choose LABEL.ASC in folder label SAP KERNEL 720_EXT for Package Location in Medium UC Kernel NW 7.20 /7.21
9) Choose LABEL.ASC in folder label EHP6 FOR SAP ERP 6.0 Installation Export for Package Location in Medium Installation Export 1 ECC 6.0 EhP6 > Choose Next
Here when you unzip/extract EHP6 FOR SAP ERP 6.0 Installation Export 1-8 files ,you will get two folders (for example: 51041989_1,51041989_2) which is Installation Export 1 ECC 6.0 EhP6, Installation Export 2 ECC 6.0 EhP6 respectively.
10) Choose LABEL.ASC in folder label EHP6 FOR SAP ERP 6.0 Installation Export for Package Location in Medium Installation Export 2 ECC 6.0 EhP6> Choose Next
11) Give Password for ABAP Schema is SAPSR3
12) Choose Next
13) Choose LABEL.ASC in folder label SL CONTROLLER 700 for Package Location in Medium Kernel NW 7.20 /7.21 > Choose Next
14) Choose LABEL.ASC in folder label RDBMS Client DVD (ORACLE Client 11.2.0.3 )
15) Choose Next here we install Diagnostic agent
16) Choose Yes
17) Choose No SLD Destination > Choose Next
18) Choose Next
19) Installation is in Progress
20) Files created (Ex: d:\oracle\KUN\sapdat1\sr3_10)
21) Roughly 15 hours to reach the “Perform ORA Post load activities” phase
22) Roughly 19 hours to reach the “create database statistics” phase
20) Completion of Installation
Finally the installation complete, a message pop-up showing the installation is successful and the SAP system is up and running. (The installation takes almost 24 hours to complete)
21) Choose Ok
6.1 CHECK WHEATHER YOU CAN LOGIN TO SAP SYSTEM
6.2 PERFORM A CONSISTENCY CHECK
To perform a consistency check, call transaction SICK6.3 APPLY THE SAP LICENSE
After you raise a request to SAP for SAP License, SAP will send you the license key text to the provided mail ID. Once the text is available on your mail6.4 CLIENT COPY
Please download the text file on desktop install the license with T-code – SLICENSE
1) ISU : Create a new client: 300 (Productive Client No)6.5 EXECUTION OF SAP LOAD GENERATOR
For Example: here we are taking ISU as system SID and 300 as client no.
Transaction: SCC4
2) Added the parameter login/no_automatic_user_sapstar = 0 for logging in with sap* user .
Change the Parameter login/system_client from 001 to 300
3) Restarted the SAP system ISU.
4) Once SAP SYSTEM is up and running. Login in Client 300 as sap* and password pass
5) Transaction : SCCL
Copy client 000 (transaction SCCL) and use profile "SAP_ALL"
Choose Schedule as Background Job
6) Choose Schedule Job
7) Choose OK
8) Follow screens shows successful completion of Job.
1) Login to Client 001 and Execute t-code SGEN
2) Select Generate All Objects of Selected Software Components and click "Continue" button
3) Select All Software Components and click "Continue" button
4) Select All Software Components and click "Continue" button
5) For quicker execution, the load generator bases itself on a parallelprocedure which incorporates available servers as much as possible. The defaultselection is the server used for this transaction and the computers with the same type Select Application Server and click "Continue" button
6) Select Job and execute option Start Job Directly
After execution we get message as: The generation job was successfully scheduled or started
7) Use the Job Overview to view the running status of Job and wait until it is finished.
8) Login with DDIC in client 000 and execute “se06” and click on Perform Post installation Action
9) Click Yes
Demikianlah Artikel SAP ERP 6.0 EHP6 ORACLE x64 2012
Sekianlah artikel SAP ERP 6.0 EHP6 ORACLE x64 2012 kali ini, mudah-mudahan bisa memberi manfaat untuk anda semua. baiklah, sampai jumpa di postingan artikel lainnya.
Anda sekarang membaca artikel SAP ERP 6.0 EHP6 ORACLE x64 2012 dengan alamat link https://tribun-mantapsss.blogspot.com/2017/09/sap-erp-60-ehp6-oracle-x64-2012.html
Baca Berita Tentang Tutorial, Blogging, SEO, dll. hanya di MELONNT VULN
0 Response to "SAP ERP 6.0 EHP6 ORACLE x64 2012 "
Posting Komentar
